iPhone 5 Antenna Explained

  • July 8, 2018
iphone 5 antennas

iPhone 5 Antennas Explained

We often receive questions regarding the iPhone 5 antennas, with the different types of Antennas this can get very confusing.   The WiFi Antenna: (Click to view Part)
  • The WiFi Antenna can be the cause of any WiFi issues.
  • The located top right of the iPhone, connected to the top, back of the Logic board.

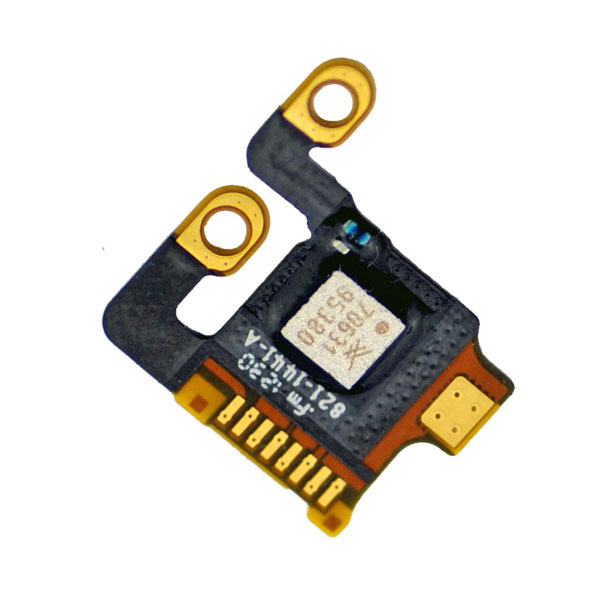

  The GPS Antenna: (Click to view Part)
  • The GPS Antenna can be the cause of any GPS issues. Uncommon to be faulty unless damaged
  • Located top right of the iPhone, connected to the frame, behind the Logic board.
  The Cellular Antenna: (Click to view Part)
  • The Cellular Antenna can be the cause of any signal and reception problems.
  • Most likely fault if you are havingnetwork issues.
  • Located bottom right of the iPhone, arount the loudspeaker.
  The Cellular Antenna Cable: (Click to view Part)
  • The Cellular Antenna Cable can be another cause of any signal and reception problems.
  • Most likely fault would be forgetting to re-connect after replacing the charge port.
  • Located on the charge port.
